Air Feed Mylar Tape Applicator
Product List
The following is a partial list of the product order numbers and their specifications that this tool is designed to run. Updates to this list
are available on www.molex.com.
Terminal No.
19023-0057
19023-0066
19606-0003
Terminal
Eng. No.
19023-0057
19023-0066
19606-0003
Wire Size
AWG mm 2
12-10 3.30-5.25
12-10 3.30-5.25
12-10 3.30-5.25
Insulation Diameter Max.
mm In.
6.10 .240
6.10 .240
6.10 .240
Strip Length
mm In.
7.92 .312
7.92 .312
7.92 .312

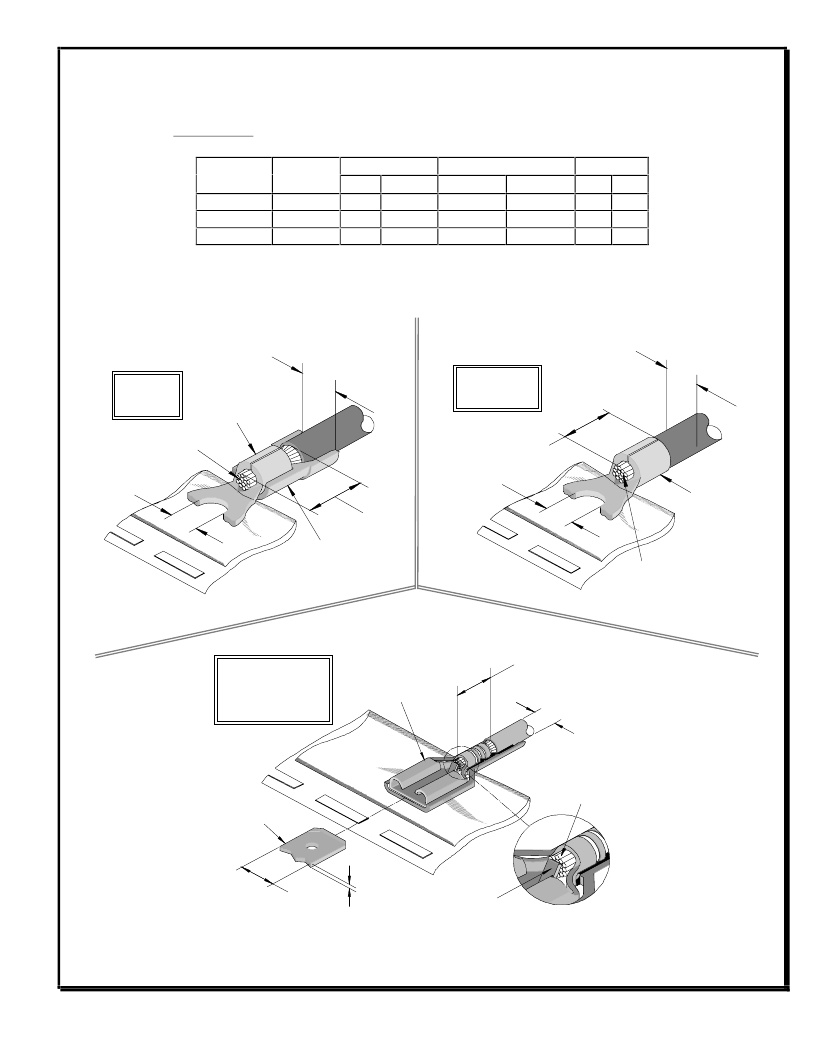

DEFINITION OF TERMS
The following illustrations are a generic terminal representation and not an exact image of any terminal listed in the scope.
Insulated
Terminal
MWID OR MAX
INSULATION
DIAMETER
BARREL
Un-Insulated
Terminal
MWID OR MAX
INSULATION
DIAMETER
BRUSH
STRIP
LENGTH
STUD SIZE
(REF)
STRIP
STUD SIZE
(REF)
BARREL
LENGTH
Figure 1
INSULATION
FERRULE
BRUSH
Figure 2
Fully Insulated
Male and Female
Quick Disconnect
FEMALE QD
STRIP LENGTH
MWID OR
MAX INSULATION
DIAMETER
BRUSH
MALE QD
REF
TAB
SIZE
TAB
SIZE
WIRE STOP
Figure 3
Doc No. 63885-2800
Revision: B
Release Date: 12-08-04
Revision Date: 10-04-05
UNCONTROLLED COPY
Page 2 of 6
